建筑级扬声器

Ci3160REFM-THX

THX® CERTIFIED ULTRA

THX® Certified Ultra Speaker with MAT™

入墙式 Ci-Reference 建筑级扬声器 Ci3160REFM-THX 是一款先进的扬声器，由英国梅德斯通的 KEF 工程师手工打造而成。这款扬声器不仅符合 The Reference 设定的标准，而且达到了 THX® Certified Ultra 认证等级（最高的 THX® 性能等级之一）。Ci3160REFM-THX 结合了第 12 代 Uni-Q 同轴共点单元和超材料吸音技术 (MAT™)，能够提供沉浸式的高保真度音场，具有优良的音质，即便在大型家庭影院和客厅中使用也同样效果出众。
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property

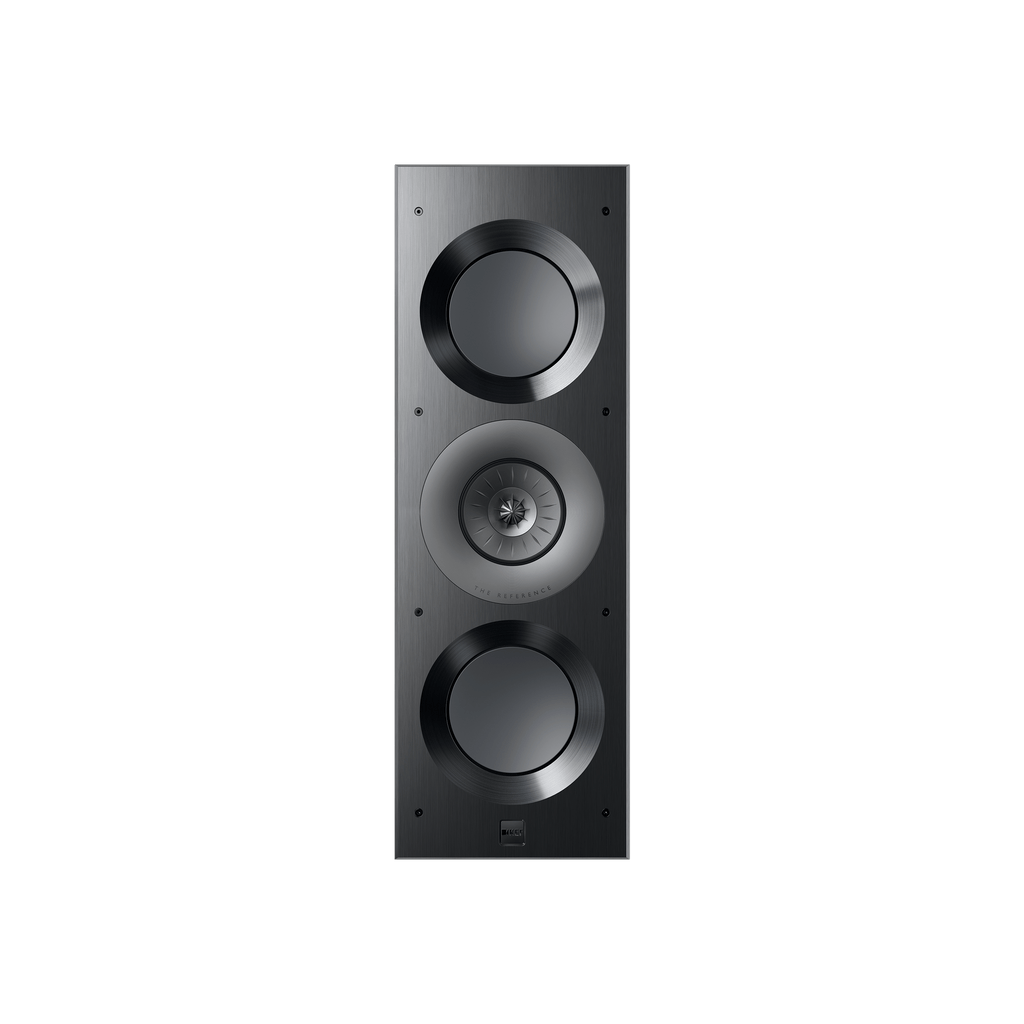

Grille Off

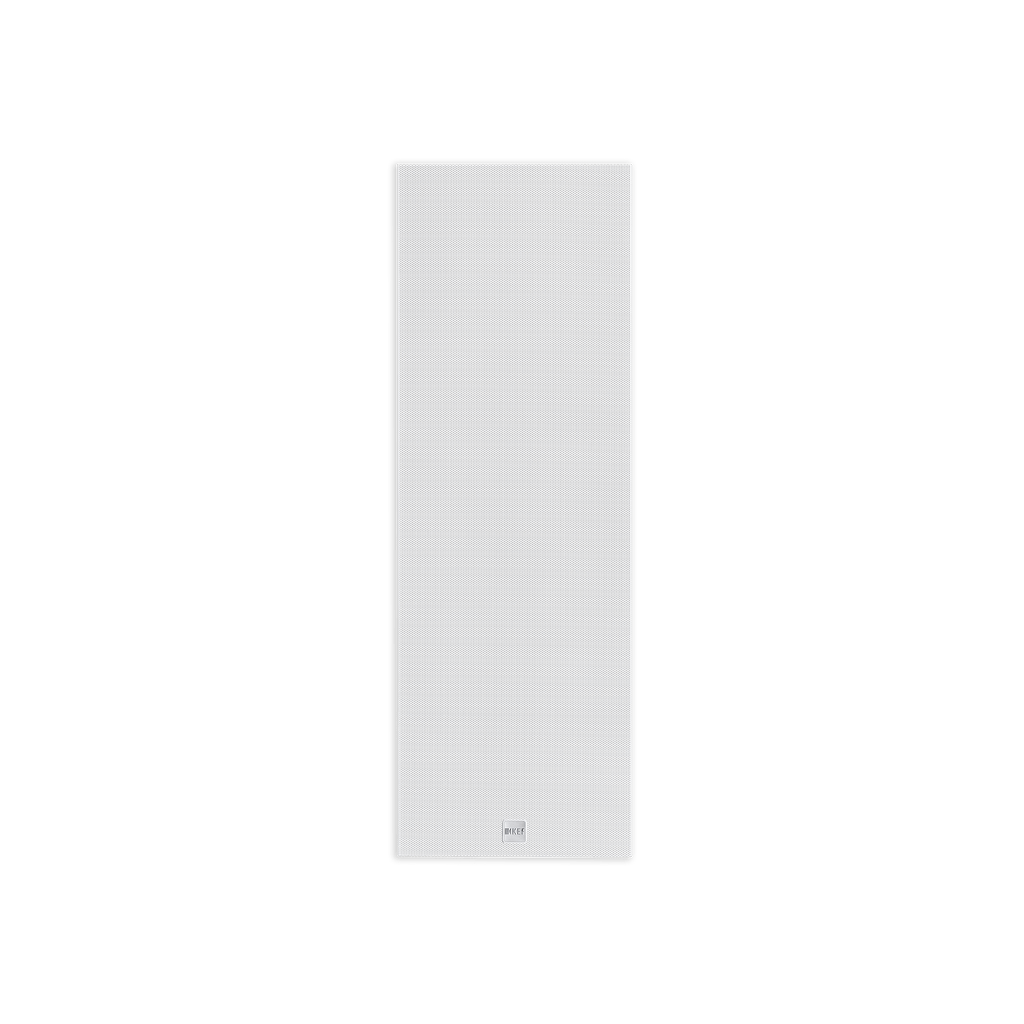

Grille On
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property
Select a property
Select a property
Select a property
Select a property

Select a property

Select a property

Select a property

逼真的高保真音质

Ci3160REFM-THX 配备两个 160 毫米（6.5 英寸）低音驱动器，能够呈现低至 35Hz 的干净、浑厚、清晰的低音。再加上专为入墙式环境而设计的大型倒相式马达系统，Ci3160REFM-THX 能够与房间融为一体，打造令人惊叹的沉浸式体验。

THX® 认证

Ci3160REFM-THX 性能出众，能够为大型家庭影院和客厅带来可媲美影院的音质，并且已获得 THX® Certified Ultra 认证。

Metamaterial Absorption Technology

吸收 99% 的多余声音

在英国手工制作

作为我们的高端扬声器，Ci-Reference 的设计、工程和手工制作工作都在英国梅德斯通完成。

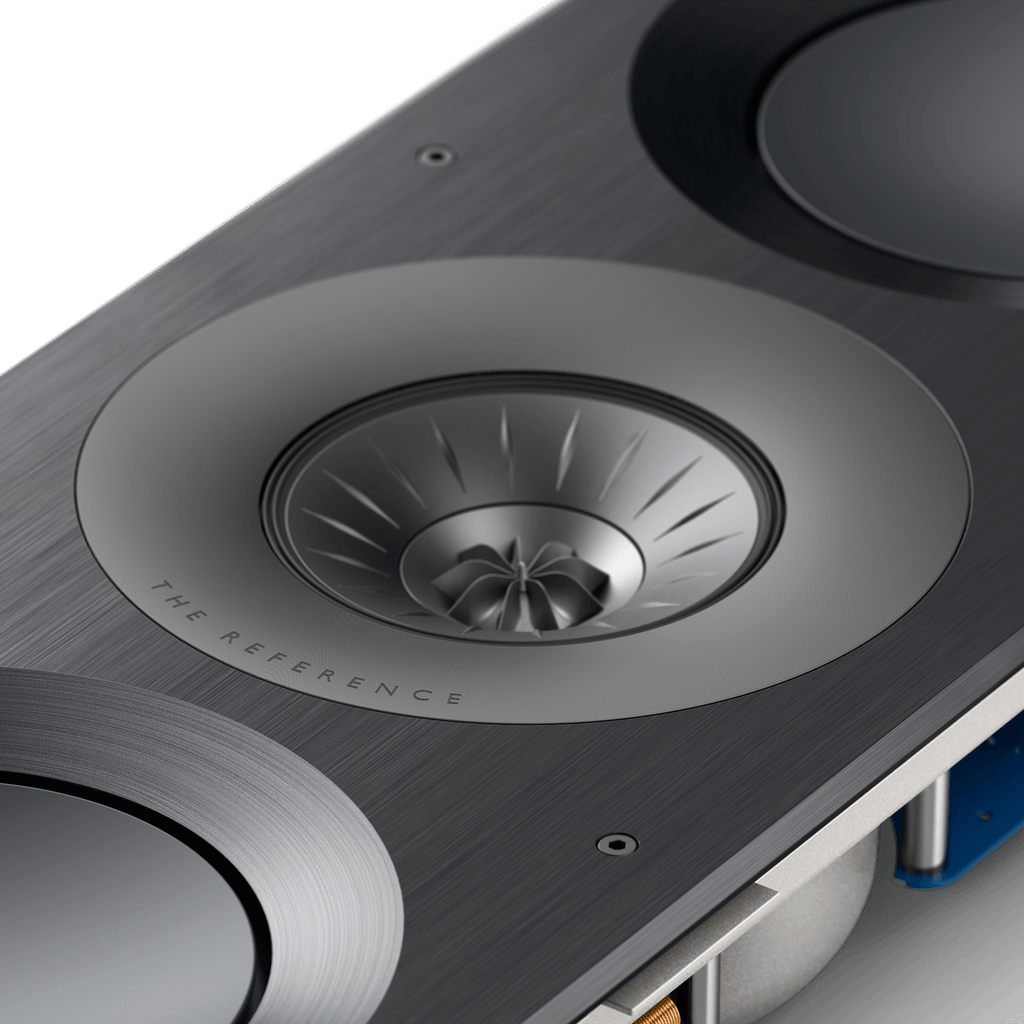

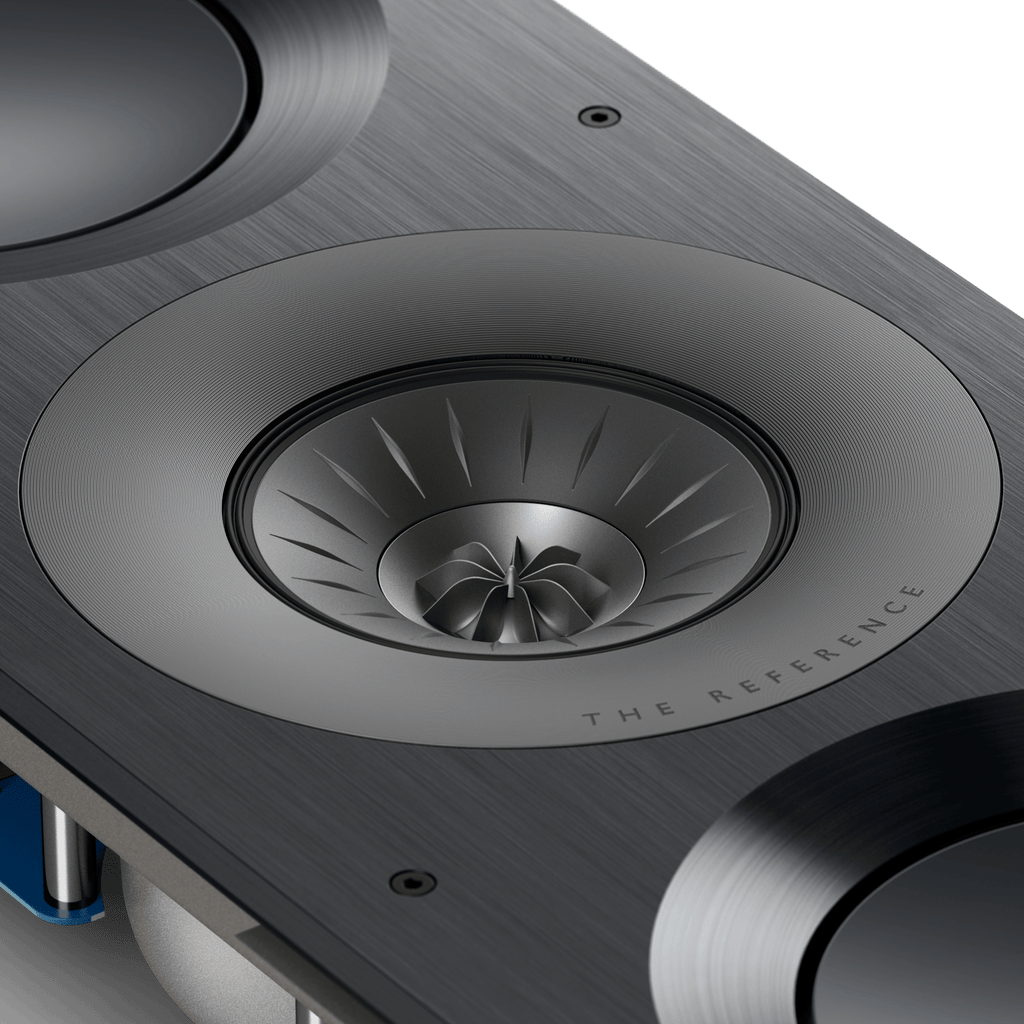

Uni-Q®

单点声源，可扩大“理想聆听位置”的范围，使声音的扩散更加均匀。

装饰精美

这款扬声器分为铝黑色/铝灰色，采用带有接缝装饰的黑色铝障板，Uni-Q 同轴共点单元为灰色。

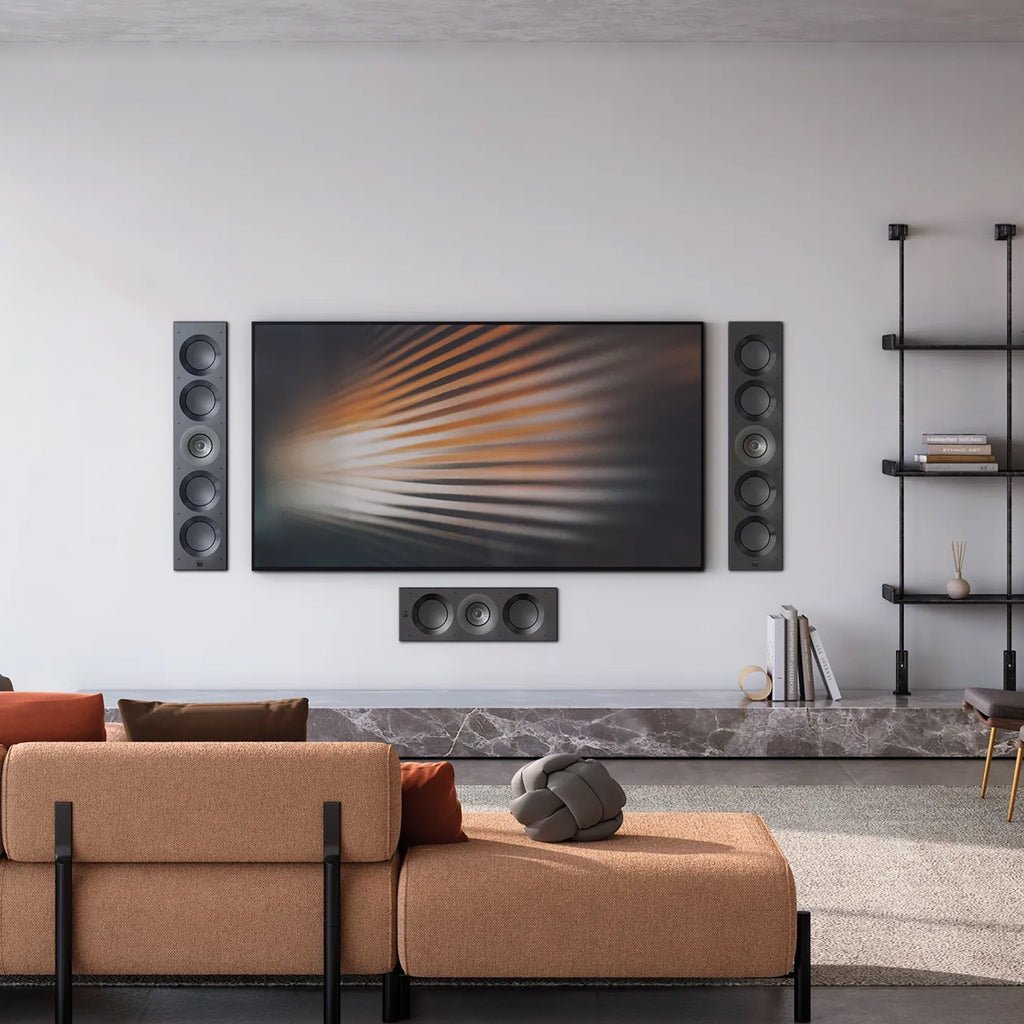

扬声器虽隐藏，但音质毫不逊色

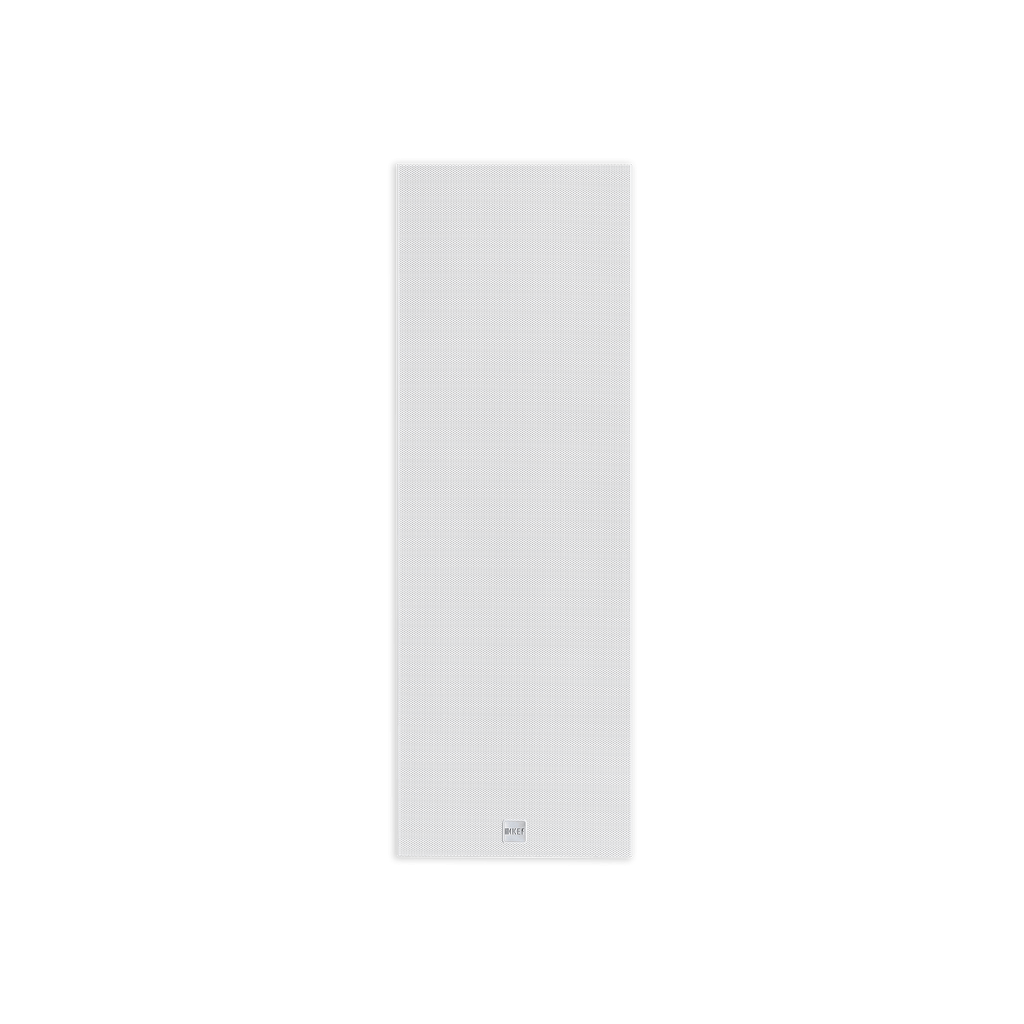

可涂漆磁性金属网罩和可选黑色布料装饰栅确保扬声器无缝融入环境中。

精于细节

精心设计的 11 毫米厚度铝障板可有效消除多余振动，为驱动器提供耐用平台，将性能发挥到极致。

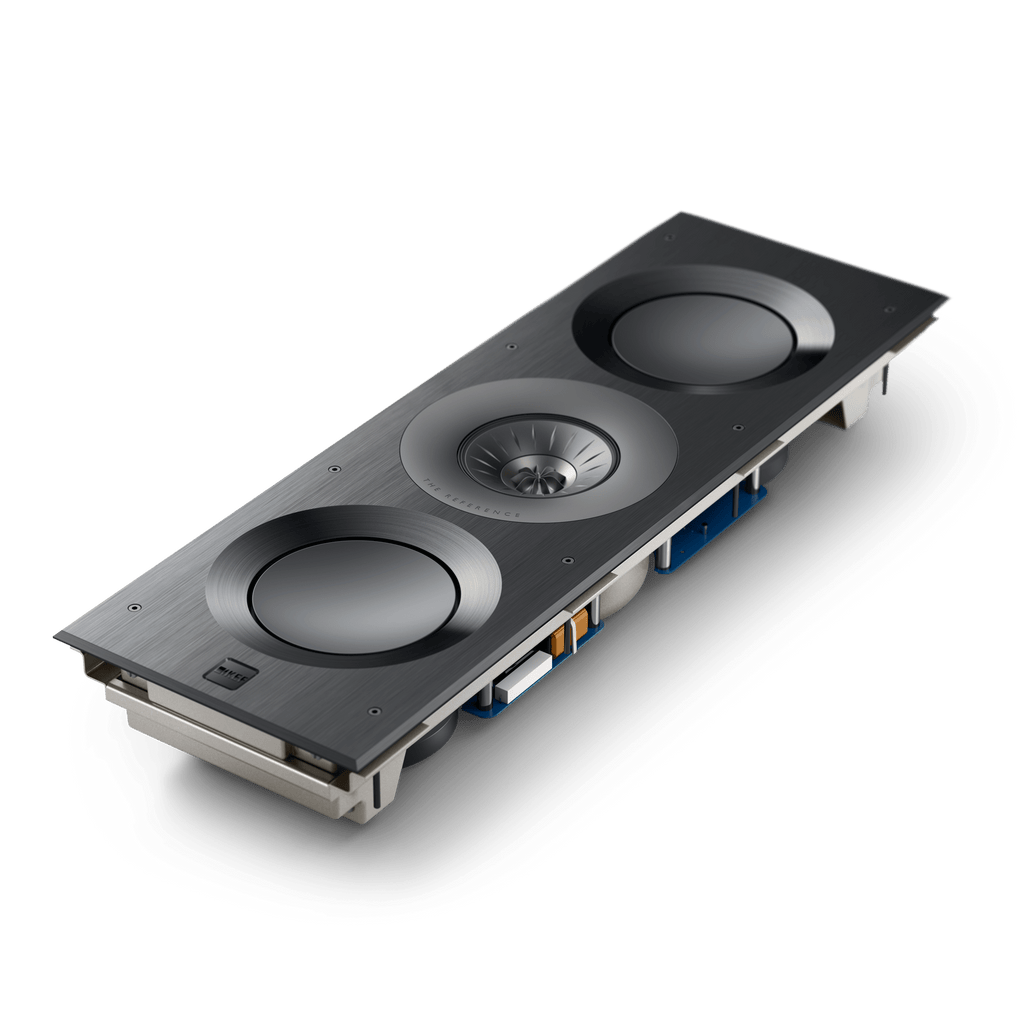

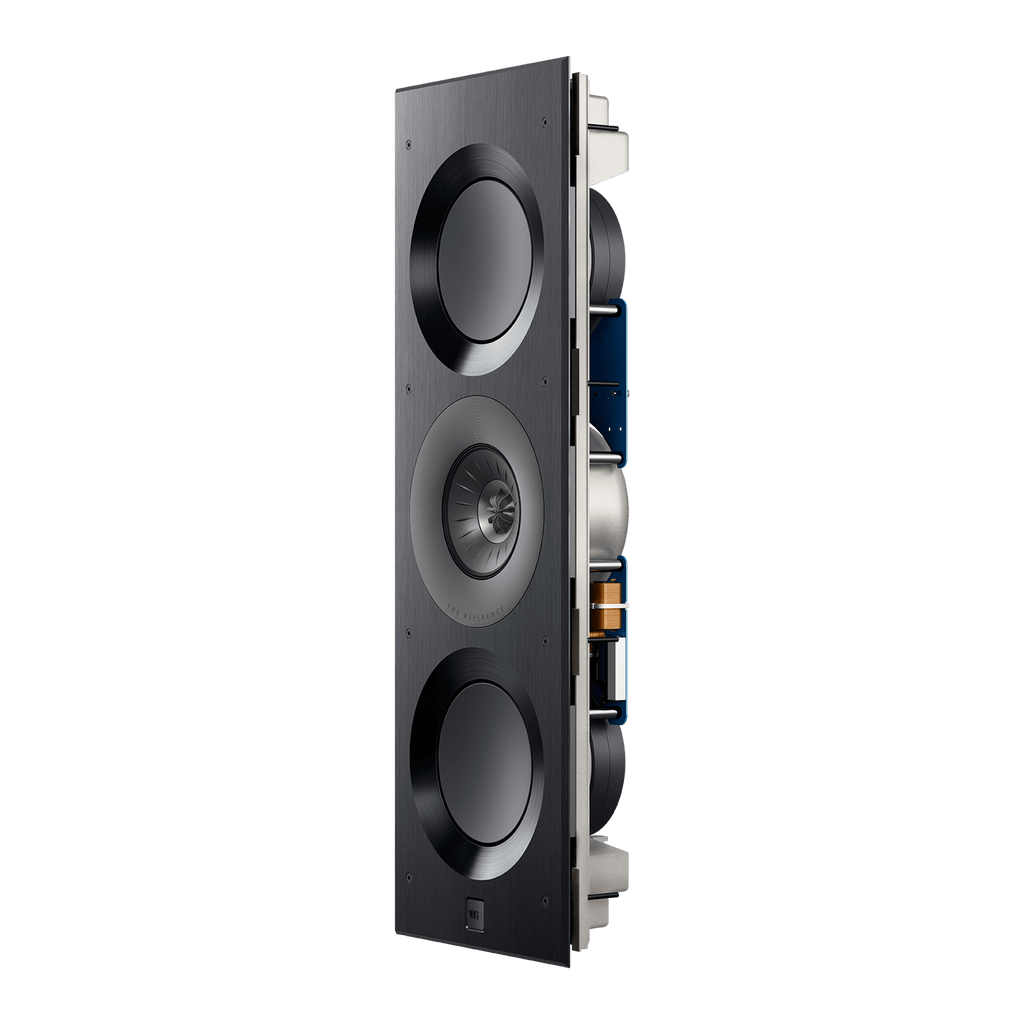

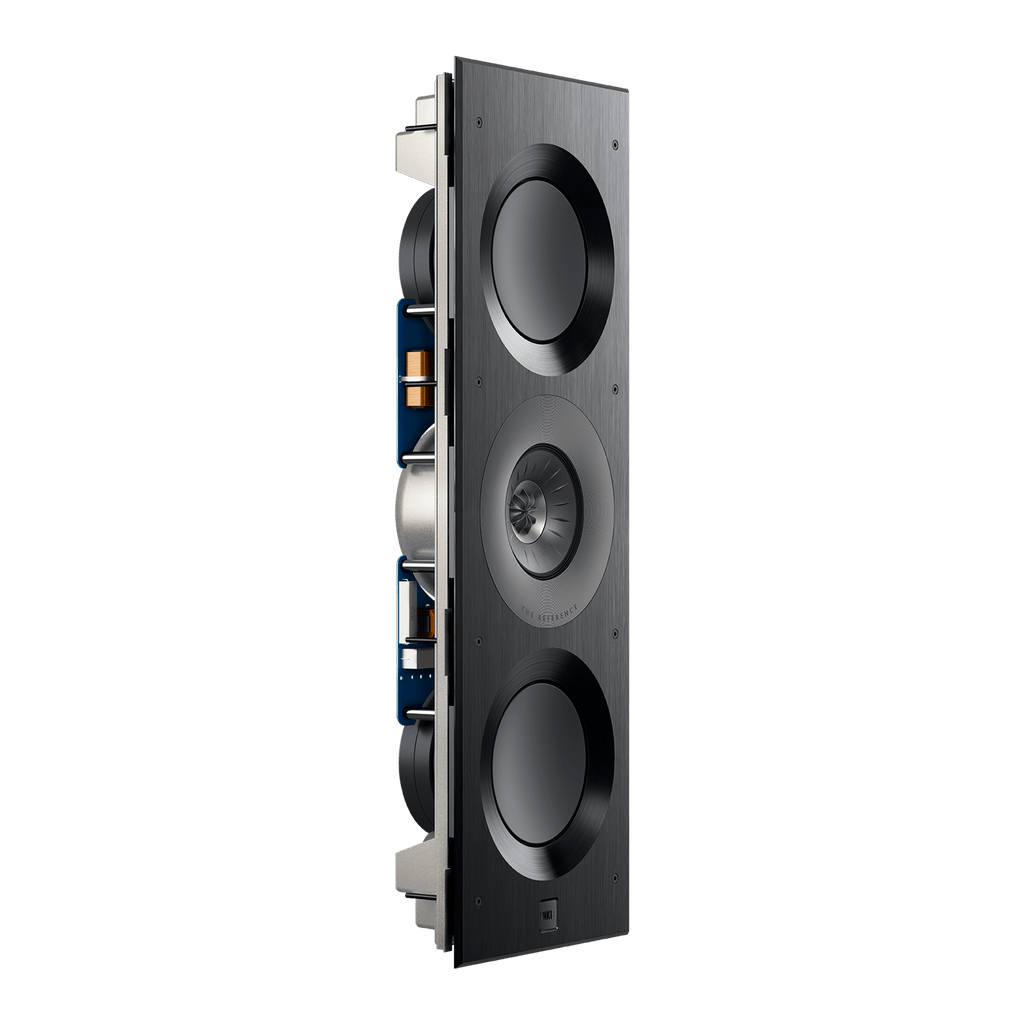

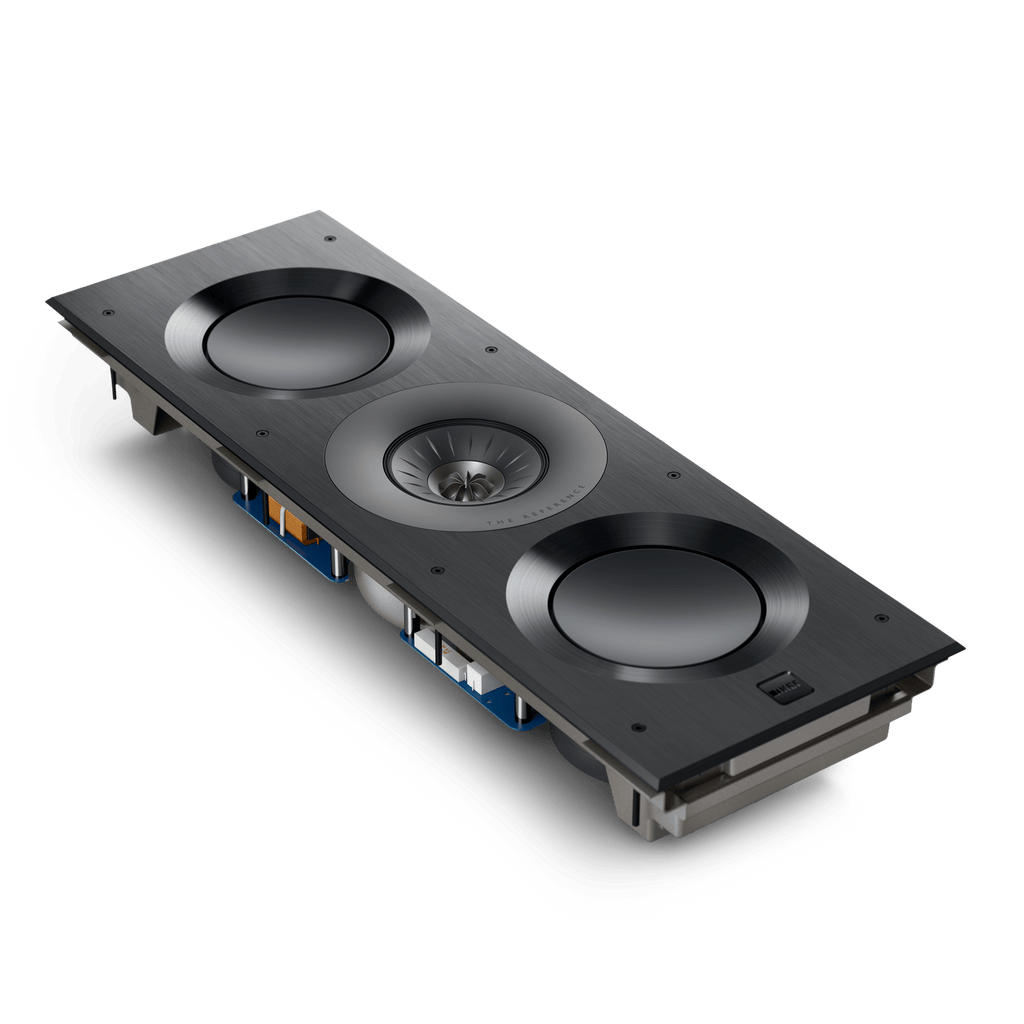

从各个角度欣赏
使用我们的 360 度交互式旋转功能，查看 Ci3160REFM-THX 的所有考究细节，品味美观时尚、音质卓越的扬声器。
*Actual product colour may vary from the AR version shown.
**This feature is not supported on Chrome for iOS devices.

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

Select a property

详细内容

FEATURES

accordion open

规格

accordion open
额定阻抗
4Ω
灵敏度 (2.83V/1m)
89dB
频率响应 (±6dB)
40 - 28kHz
频率范围 (-10dB)
32 - 45kHz
覆盖角度
150°
分频点
600Hz, 3kHz
驱动单元
低频: 2 x 160mm (6.5英寸)
中频: 125mm (5.25英寸) Uni-Q
高频:  25mm (1英寸)  导管式铝制球顶，搭载 MAT 技术
建议功放功率
50 - 350 W
建议高通滤波 (Hz)
35Hz - 80Hz
产品外形尺寸 (H x W x D)
680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
开孔尺寸 (H x W)
660 x 209mm (25.98 x 8.23in.)
净重
13.6kg (29.92lbs.)
表面以下安裝深度
99mm (3.9in.)
选用预置框架
RIF3160L
理想后部容积 (L)
60
最小后部容积 (L)
30
最高声压级 (dB)
110dB
专业认证
THX Certified Ultra
墙壁厚度 (最大)
40mm (1.58in.)
墙壁厚度 (最小)
6mm  (0.24in.)
备注

1 超材料吸音技术是与 Acoustic Metamaterials Group 联合开发的。
鉴于持续的研发，KEF 保留修订或变更规格的权利。E & O.E。THX、THX logo 和 Ultra 为 THX Ltd 所拥有之商标，THX 和 THX logo 于美国登记注册，保留所有权利。
